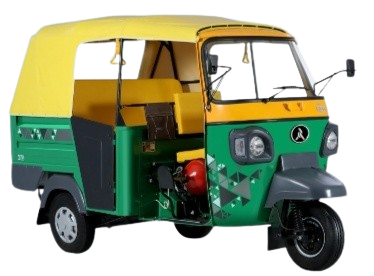

ATUL GEM PAXX AQUA (CNG)
SPECIFICATIONS
| PERFORMANCE | |
|---|---|
|
Fuel type |
CNG |
|
Fuel tank capacity |
CNG 40/ Petrol 2.7ltr |
|
Engine |
Four stroke, single cylinder, spark Ignition, water cooled |
|
Displacement |
395 cc |
|
Max Power |
7.25 kw @ 3400 +/_ 200 rpm |
|
Max Torque |
24.5 Nm @ 1600 – 2400 rpm |
|
Mileage |
36 kmpl |
|
Gross weight |
854 kg |
|
Kerb weight |
534 kg |
|
Electrical system |
12 V 45 AH Multi plate lead acid battery |
| TYRE DETAILS | |
|---|---|
|
Number of tyres |
3 |
|
Front tyre size |
4.5″ – 10″ , 8 PR |
|
Rear tyre size |
4.5″ – 10″, 8 PR |
| BRAKES AND SUSPENSION | |
|---|---|
|
Brakes |
Drum brake, Dual circuit, hydraulic, front and rear combined with TMC |
|
Front suspension |
Hydraulic telescopic double acting, Helical compression spring and damper |
|
Rear suspension |
Hydraulic telescopic double acting, heavy duty spring rubber spring and damper |
|
ABS |
No |
|
Parking brake |
Yes |
| CLUTCH TRANSMISSION | |
|---|---|
|
Gearbox |
4 forward + 1 reverse |
|
Transmission |
constant mesh |
|
Steering |
Handlebar type |
| AUTO BODY CABIN | |
|---|---|
|
Body option |
fully built |
|
Seating capacity |
Driver +3 passenger |
|
Chassis type |
Monocoque chassis |
|
Cabin variant |
Day cabin |
| DIMENSIONS | |
|---|---|
|
Overall length |
2990 mm |
|
Overall width |
1460 mm |
|
Overall height |
1830 mm |
|
Wheel base |
1925 mm |
|
Ground clearance |
255 mm |
